Главная страница /Продукция/электрический вентилятор воздуходувки/Worldwide Medium Pressure Blower (CE/RoHS Approval) GOORUI Vacuum Blower 7.5kw Industrial Electric Blower FAN

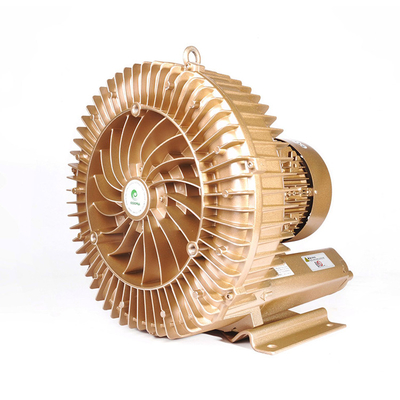

Worldwide Medium Pressure Blower (CE/RoHS Approval) GOORUI Vacuum Blower 7.5kw Industrial Electric Blower FAN

1 Piece
MOQ
$633.60(1 - 4 Pieces) $600.00(5 - 9 Pieces) $568.00(10 - 19 Pieces) $544.00(>=20 Pieces)
цена
Worldwide Medium Pressure Blower (CE/RoHS Approval) GOORUI Vacuum Blower 7.5kw Industrial Electric Blower FAN
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Rated Voltage: 345-415V/600-690V
Model Number: GHBH 010 36 AR8-IE3
Application: Air Blower
Pressure: Medium Pressure
Power Source: Electric Blower
Model: GHBH 010 36 AR8
Frequency: 50/60
Voltage: Three Phase
Power: 7.5kW
Max airflow: 700m3/h
Max Vacuum: 260mbar
Max Pressure: -270mbar
color: golden/silvery
Lead-time: 7 days
Weight: 69KGS
Основная информация
Model Number: GHBH 010 36 AR8-IE3, GHBH 010 36 AR8
Оплата и доставка Условия
Packaging Details: 1 piece/ 1 carton Gross weight: 71kgs Net weight: 68kgs
Характер продукции
Product Description
Specification
Product Name
7.5kw SIDE CHANNEL BLOWER
Model No.
GHBH 010 36 AR8
Frequency
50Hz
Power
7.5KW
Voltage
345-415/600-690Y(V)
Current
16.7/9.6Y(A)
Max Airflow
700m3/h
Max Vacuum
-270mbar
Max Pressure
260mbar
Sound
70db(A)
Weight
69kg
Certificate
CE/ROHS/TUV/ISO certificates
Operational Principles: When the blade of high pressure air blowers rotates, the wind vane causes gases to move forward and outward under centrifugal force, producing a series of spiry movements. The air between impeller blades speeds up rotation and the gases outside the pump body are pushed into side slot (through inlet), The gases are compressed upon entering side channel, and go back between impeller blades for another speeding-up rotation. When air goes through blade and side slot along a spiry track, each blade increases its compressing and speeding-up level. As the blade rotates, the kinetic energy of gases is increased, which in turn increases the pressure of gases that go through the side channel. When air arrives the connection between side slot and release flange (the side channel becomes narrow at the outlet), gases will be immediately extruded out of vanes and released from the pump body through silencer at the outlet.
INSTRUCTIONS 1. It should be placed in a relatively stable place, and the surrounding environment should be clean, dry and ventilated. 2. The direction of rotation of the impeller must be consistent with the direction of the pointed tip marked on the fan cover. 3. When working, the working pressure should not be greater than 8 kPa, so as to avoid excessive heat generation of the air pump and damage to the air pump caused by motor overcurrent. 4. It is strictly forbidden for solid, liquid and corrosive gas to enter the pump body. 5. The filters and silencers at both ends of the air inlet and outlet should be cleaned in time according to the situation to avoid clogging and affecting use. 6. The external connection of the air inlet and outlet must be connected by a hose (rubber tube, plastic spring tube) PRECAUTIONS 1. Flat washers and spring washers must be used to tighten the screws 2. It is best to use rubber buffer rubber to bear the weight of the vortex air pump, especially the high-power vortex air pump, which is indispensable. 3. For some occasions that require noise, a silencer can be installed to reduce the noise (generally down, about 5 dB), the silencer is installed at the end of the inlet duct or outlet duct 4. For some occasions with high requirements for noise, you can add a layer of silencer cotton according to the conditions of the machine itself to meet the noise requirements on site. For details, please consult our customer service 5. When using silencing cotton to silence the sound, pay attention to the distance between the vortex air pump and the box, pay attention to the ventilation and heat dissipation of the vortex air pump, and pay attention to using rubber cushioning to bear the weight of the vortex air pump. According to the picture, you need to consult customer service. 6. The air inlet and outlet of the vortex air pump For pipe connection, hose connection should be used to isolate vibration.
GOORUI Ring Blowers are extensively used in wood-working machinery, PCB products machinery, Food & Beverage, aquaculture aerator, Gas analysis, Industrial vacuum cleaners/ central extraction systems, Printing & Paper industry, Textile, Plastic products machinery and sewage treatment and so on.
Packaging & Shipping
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
FAQ
Q1：What is the warranty of your machine? A1：18 months, any product itself question,you can contact with us. Q2：What is the material of your machine , is oil free? A2：Our machine is aluminum alloy, motor is 100% copper coil , of course, we are oil free. Q3：How to operate your machine? A3：Connect with wire, and turn on the power, so you can use it directly, about the wiring method, we will tell you how to do according to your voltage, so at first , you need to tell us your voltage and phase,its important. Q4：You are trading company or manufacture? A4：We have our own factory and international department,We produce and sell all by ourselves. Q5：How to guarantee the quality and after sales service of your goods? A5:1).Strict detection during production. 2).Strict sampling inspection on products before shipment and intact product packaging are insured. 3).Follow up and adopt customers feedbacks in a timely manner after sales.
