Главная страница /Продукция/Вентилятор двигателя/Anti 97mm Oven Fan Motor High Temperature 9733 Metal DC Blower Fan 24v 12v Air Flow High Temperature Fireplace Blower Fans 3000 - 7000 RPM High

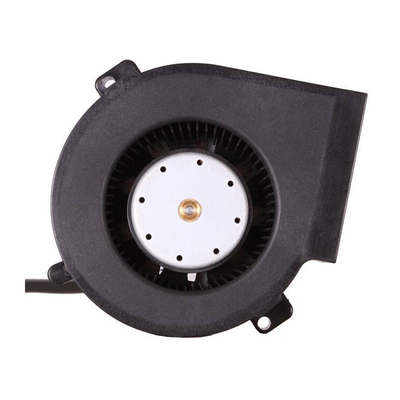

Anti 97mm Oven Fan Motor High Temperature 9733 Metal DC Blower Fan 24v 12v Air Flow High Temperature Fireplace Blower Fans 3000 - 7000 RPM High

1 Piece
MOQ
$8.00(1 - 999 Pieces) $6.98(1000 - 9999 Pieces) $6.20(>=10000 Pieces)
цена
Anti 97mm Oven Fan Motor High Temperature 9733 Metal DC Blower Fan 24v 12v Air Flow High Temperature Fireplace Blower Fans 3000 - 7000 RPM High
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Warranty: 1YEAR
Customized support: OEM, ODM, OBM
Rated Voltage: 12V, 24V, 48v
Model Number: DID9733CBH1
Application: Fan Blower
Pressure: High Pressure
Power Source: Electric Blower
Product name: 97*95*33 mm air Blowers fans
Color: Black
Speed: 5000rpm - 8500rpm
Working Hours: 24 / 7
Motor: DC Motor
Bearing: NMB Ball Bearing
Usage: Oven Blower, toy inflatables
Frequency: 25khz
Feature: Anti high temperature
Сертификация: CE ROHS
Основная информация
Сертификация: CE ROHS
Model Number: DID9733CBH1
Оплата и доставка Условия
Packaging Details: Earthquake resistant cotton
Supply Ability: 5000 Piece/Pieces per Day
Характер продукции
Metal 9733 97mm Oven Fan Motor High Temperature DC Blower Fan 24v 12v High Air Flow 3000 - 7000 rpm Fireplace Blower Cooling Fan
Fan Specification

Model Bearing
Type		 Rated
Voltage		 Operating Voltage Input
Current		 Input
Power		 Speed Max
Air Flow		 Max air pressure Noise Weight
Part No. B/S VDC VDC Amp Watt RPM m3/min CFM Mm-H20 In-H20 dB-A g
DID9733BB(S)H1 B/S 12 7-14 0.46 5.52 3000 0.623 21.80 42.54 1.674 46.0 165.0
DID9733BB(S)M1 B/S 12 7-14 1.60 19.20 5000 1.004 35.17 68.61 2.701 50.0 165.0
DID9733BB(S)L1 B/S 12 7-14 2.55 30.60 7000 1.447 50.65 98.80 3.890 70.0 165.0
DID9733BB(S)H2 B/S 24 15-27 0.23 5.52 3000 0.623 35.17 68.61 2.701 46.0 165.0
DID9733BB(S)M2 B/S 24 15-27 0.80 19.20 5000 1.004 50.65 98.80 3.890 50.0 165.0
DID9733BB(S)L2 B/S 24 15-27 1.80 43.20 6000 1.246 43.61 85.08 3.349 66.0 165.0
DID9733BB(S)H4 B/S 48 35-52 0.12 5.76 3000 0.623 35.17 68.61 2.701 46.0 165.0
DID9733BB(S)M4 B/S 48 35-52 0.40 19.20 5000 1.004 50.65 98.80 3.890 50.0 165.0
DID9733BB(S)L4 B/S 48 35-52 0.90 43.20 6000 1.246 43.61 85.08 3.349 66.0 165.0
Product Description

Fan type DC blower fan
Voltage DC 12v 24v 48V
Size 97 x 92 x 33 mm
Speed range 3000 - 7000 rpm
Feature Anti-high temperature, High speed, Compact Size, Muti-application
Material Metal aluminum + PET impeller
Usage Oven, fireplace, High-power barbecue stove, toy cartoon gas mold, intelligent toilet deodorization, car office seat turbine cooling, car air purification, Oxygen generator, toy inflatables
Additional signal FG: Output speed signal, RD: Lock alert function, TC: Temperature adjustment function, PWM: Duty/Pulse speed regulation,EC: Ac to DC, VCC: (Voltage control/Automatic control) function.
Additional protection Automatic lock/start function of AS, Slow start function, Overcurrent protection, Reverse connection protection, Overvoltage protection, dustproof waterproof IP54 IP55, IP67.

FAQ

1)What's your product warranty? What if the fan has any problems during the warranty period?
Generally speaking, the warranty of the ball bearing fan is one year.
If there is any problem with the fan within one year, please send the video of the defective product or return the defective product for our analysis. We will analyze and confirm the quality problem of our product, and we will replenish it to you as soon as possible.


2) How do you manage your QC system?
Please don't worry. We have a complete quality control system. We have a series of inspections from raw materials to production to shipment, as shown below.

Incoming inspection (including inspection of frame blade, fan blade and other parts)
Semi finished products (mainly motor stator assembly test)
OQC test / Complete inspection of finished products (including performance test, appearance inspection, etc.)
Aging test (about 2-3 days)
Random sampling inspection
Double layer customized packaging (mainly to ensure that customers can receive goods intact)

3) Do you support samples? how long I can get the sample?
Yes, of course, but I'm afraid the sample fee and freight cost will be paid by your side.
For fans lead time, if we have samples in stock, then we could send you right away,
But if no stock, It probably would be 3-5days after we received the payment from your side, thank you.

4) Do you support customization?
Yes, of csif you have any other needs, such as customizing different sizes, speed, air volume, air pressure, noise, etc., we will try our best to meet your needs.
Production Process
