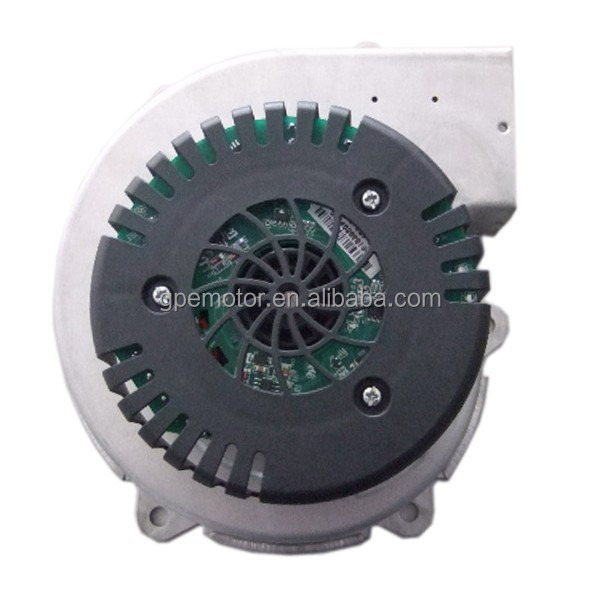

Gas Blower New Product Custom AC Single Inlet Electric Blower Fan

100.0 Pieces
MOQ
Gas Blower New Product Custom AC Single Inlet Electric Blower Fan
Характеристики Галерея Характер продукции Спросите цитату
Характеристики
Характеристики
Rated Voltage: 220V
Model Number: GRA97/0040-A
Application: Gas Blower
Pressure: High Pressure
Power Source: Electric Blower
Motor: AC Shaded Pole Motor
Material of Housing: Aluminized Sheet Steel
Bearing: NMB maintenance-free ball bearing
Impeller: Aluminized Sheet Steel
Lead Wire: AWG#18 UL1007
Motor Protection: Thermal protection
Insulation Class: Class "H"
Max Ambient Air Temp: 180° C(Continuous)
Max Ambient Air Temperature: 250° C (instantaneous)
Основная информация
Model Number: GRA97/0040-A
Оплата и доставка Условия
Packaging Details: Pallet package: 125pcs, 310kg, 1100x1150x1050mm
Supply Ability: 50000 Piece/Pieces per Month
Характер продукции

Custom AC Single Inlet Electric Gas Blower Fan

Product Overviews



EC DC Gas Blower Sizes

108, 118, 120, 130, 148, 150,175 series (or Customized)

AC Combustion Fan Sizes

85, 97, 108, 120 series (or Customized)

AC DC EC Centrifugal Blower Sizes

85mm~150mm (or Customized)

Voltage

AC Input: 210V,220V,230V,380V,400V

DC Input: 12V,24V,48V

EC input: 210V,220V,230V,380V,400V

(or Customized)

Power

Up to 2300W  (or Customized)

Speed

Up to 3300RPM (or Customized)

Air Flow

Up to 7000m3/h (or Customized)

Speed control

Speed controller (AC) or PWM/0-10V Input (DC EC)

 DATASHEET  DOWNLOAD

Product Description

Electrical Parameters

Motor

Shaded Pole Motor

Insulation Class

Class "H"

Motor Protection

Thermal Protection

EMC

EN 55011 and EN50082-2

Mechanical Parameters

Impeller Dimension

Φ97mm

Material of Impeller

Aluminized Sheet Steel
Other Parameters
Approval CE, CCC, ErP2015 and Rosh compliance
Warrent 18 months after delivery



Specification

Item Code:  GRA97/0040-A

Rated
Voltage

Frequency
(Hz)

Rated
Current(A)

Input
Power(W)

Air Flow
(m3/h)

Static Pressure
(Pa)

Net Weight

(Kg)

230V

50/60

≤0.33

37

178

240

1.50

Outline Drawing


Application



Customized Solutions

Customized Fan and Blower Solutions

GP Motor specialize in design, custom and manufacture electric fans, including Centrifugal Fans, Centrifugal Blowers, Axial Fans, Inline Duct Fans, Cross Flow Fans, Gas Blowers, Fan Motors and Fan Components. All of them can be fully and easily customized (see some of the many customization options listed below). We committed to offer high quality, high performance, cost effective options to meet customers specific demands. Choosing to customize one of the fans in our Product Categories now!
